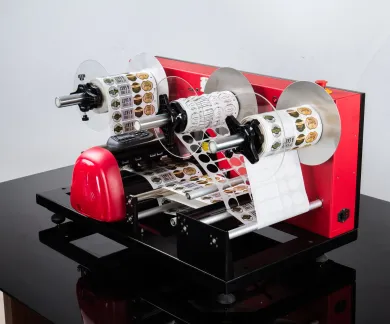

Saga Roll Label Cutter

Overview
Max. cutting straight-line speed of 960mm/min
Max. cutting curve-line speed of 600mm/min
Max. media of 16”
Max. cutting width of 12”
Max. cutting length of 6” for one time
Motor power: 25watt
Max. down force: 750g (3g/step)
CPU: 64 BIT dsp 32m Flash
Encoder signal: physical 1016 line/round, logical 4064 line/round
Repeating precision: 0.082mm
Noise: 35 dB OR LESS
Ambient temperature: 5 - 35 degrees
HPGL commands
With feeding system and rewinding system
Servo control system, fast and quiet
Direct USB, easy and reliable
SD card memory: 4G, no need computer to run machine
Packing size of 114x79x69cm
G.W / N.W.: 110/75kgs

Roll core diameter: 8.5cm

Max weight of roll: 7kg

Max diameter of roll of labels: 30cm

Shaft diameter for labels: 28mm
Description
Autoweeding feature to remove and rewind continuous weed auotmatically
Contour cutting is performed automatically
Perfect for low-cost, on-demand, short run labels, specialty labels of any shape, and helps reduce inventory.
Application
Motor: Servo
Maximum Cutting Width (mm): 330
Maximum Media Width (mm): 420
Max. Label Length (mm): 305
Max. Label Width (mm): 305
Measurements (cm): 114 x 79 x 69
Gross Weight (kg): 110
Net Weight (kg): 75
Feed System: Direct Pull, Take Up Reel
Construction: Aluminum Alloy, ABS End Caps
Maximum Drawing Speed (mm/s): 960
Maximum Cutting Speed (mm/s): 960
Control System: Servo Motor
Power (w): 25
Tracking: 5
Maximum Force (g): 750
Maximum Force Increment (g/step): 3
Mechanical Resolution (mm/pulse): .01254
Connections: RS-232, USB
Power Supply: AC 110V-240V / 50-60HZ 6A
Maximum Noise (dB (A)): 35
Ambient Temperature Range °C: 5 - 35
Command Language: HPGL
Media: Label stock, release liner backed materials
Pen Included: Yes
Included Blades: 30°, 45°, 60°
Packaging: Crate
Computer Connection: True USB, no driver needed, direct connection to USB Printer
Carriage Type: Cutting head with 4 wheels
Contour Cutting: Laser sensor, automatic ARMS
Straight Line Speed (mm/s): 0 - 960
Curve Speed (mm/s): 0 - 600
Motor Speed (RPM): 0 - 3500
0-3000 RPM Time Idle Load (miliseconds): 20
0-3000 RPM Time Working Load (miliseconds): 1200
Encoder Signal Physical (line / round): 1016
Encoder Signal Logical (line / round): 4060
Processor (bits): 64 DSP
Processor Flash (M): 32
Accuracy (±mm): .01
Repeating Precision (mm): .082
Stand Availability: Desktop
Basket Availability: No
Standard Warranty: 3 Year Parts And Labor
Perf Cut Capable: No
CE Certification: Yes
Color: Red
Compatibility PC: XP, Vista, 7-32, 7-64, 8-32, 8-64
Compatibility MAC: Yes
Software - SignCut: PC, Mac
Software - DragonCut: PC, Mac with BootCamp
Software - Flexi: PC
Software - ArtCut: PC
Software - VinylMaster: PC, Mac with BootCamp
Software - WinPC Sign: PC
Software - Onyx: No
Software - Plug In Driver: Direct Plug In Driver, PC only
Software - Stencil Cutting: No
SD Card Memory: 4G
