Overview

The LCX603 is suitable for small production runs of various labels of any shape.

Description

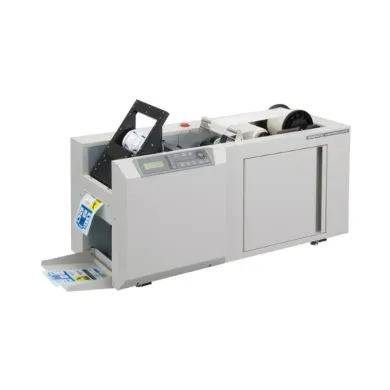

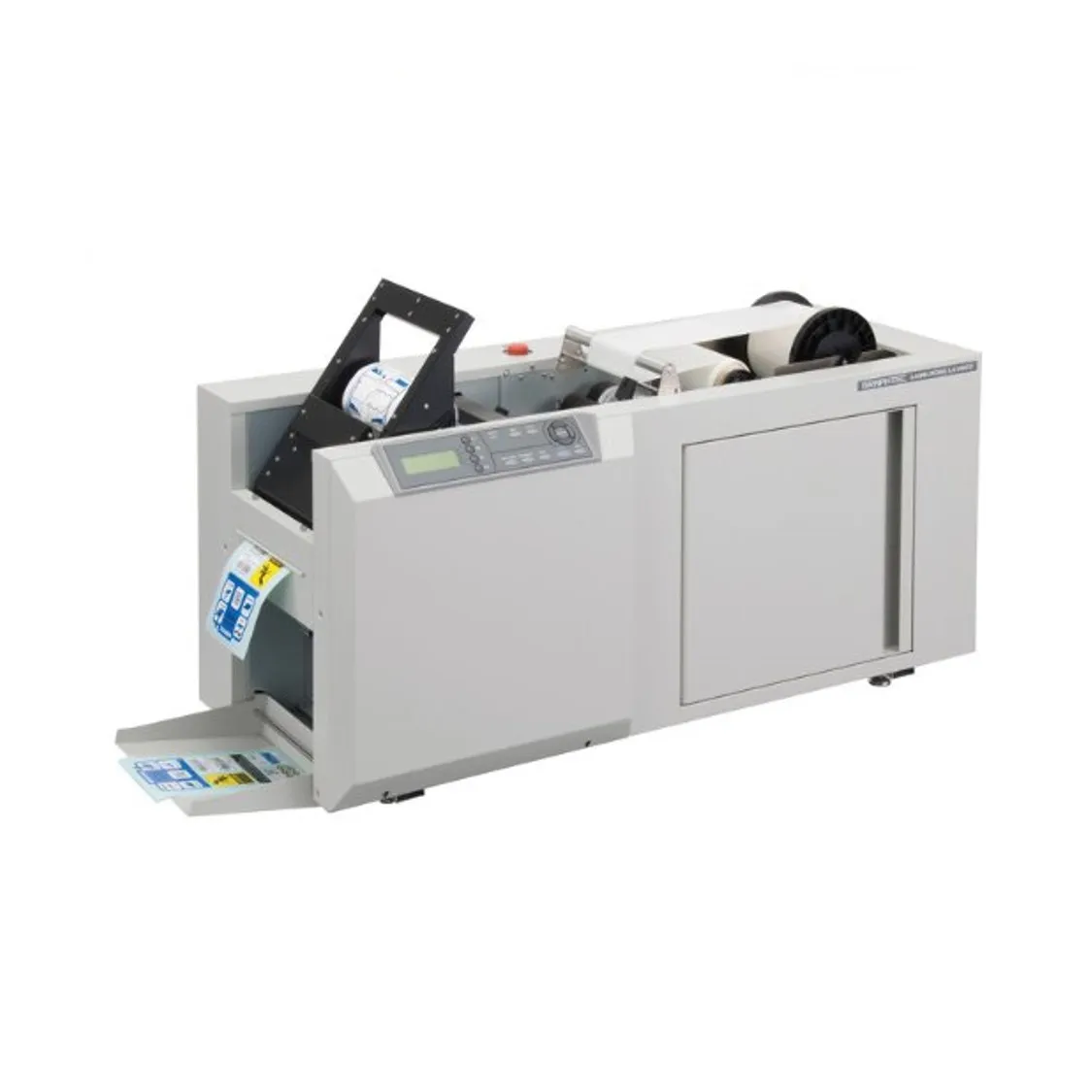

The LCX603 is All-in-one, industrial label printer and finishing solution that includes multiple spot color printing, auto laminating, contour-cut, auto weeding and a sheet cross-cut function. Perfect for low-cost, on-demand, short run labels, specialty labels of any shape, and helps reduce inventory too.

Printer section Specification
Item LCX603-01
(Single color model) LCX603-02
(Two colors model) LCX603
(Three colors model)
Printing method Thermal transfer
Resolution 600 × 1200 dpi, 600 × 600 dpi
Number of thermal head 1*1 2*1 3
Printing colors 1 color (only black) Max. 2 (black & 1 color) Max. 3 (black & 2 colors)
Printing speed Max. 35 mm/s
Effective printing width Max.100 mm
Effective printing Length

40 mm – 200 mm (in each label)
Printing position accuracy N/A +/- 0.3 mm or less (after adjusted in the menu)
Min. printing character size 8 pt (in specified condition)
Min. printing line width 0.3 mm
Ink ribbon Size width 120 mm, Length 100 m
Core size Bore 1 inch, width 140 mm; Max. diameter of rinnon: 50 mm
Available ink ribbon RESIN (Black)
Semi-RESIN (Black) RESIN (Black, Red, Blue, Yellow, White)
Semi-RESIN (Black, Red, Blue, Green, Orange)
Label material Width: 70, 80, 90, 100, 110, 120, 130 mm, Thickness: 25 µm - 85 µm
Outside diameter of roll: Max. 195 mm (approx. 100 m long) including 3-inch core
Laminate material Width: 50, 60, 70, 80, 90, 100, 110 mm
Outside diameter of roll: Max. 140 mm including 3-inch core
Core size for take-up: 1 inch bore, Width: 140 mm
