Overview

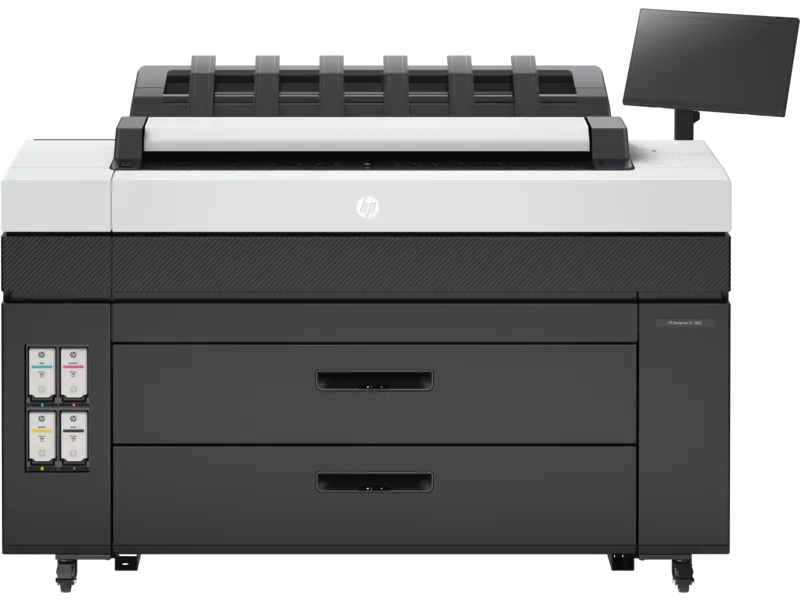

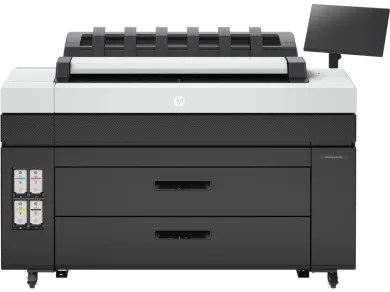

HP Designjet XL3800 36-in Multifunction Printer

PRODUCTIVE—Speed and color in one device

Keep projects moving productively with the fastest color printer at 6 A1 color pages/min in its class.
Produce excellent CAD lines and graphics applications in monochrome and color with one large-format device with HP Flex Tech Inks.
No time is lost waiting for printouts—this printer
delivers the first page out in 20 seconds.
network

EFFICIENT—Simple and optimized

Give users an easy one-click copy and scan experience via the intuitive 15-inch front panel.
Optimize space with a large-format printer that is 20% more compact.
Take sustainability further with cardboard-based cartridges and printer made with 33% recycled plastic.

SECURE—Protect your printer, data, and network

Defend your network and data with the world’s most secure large-format printer.
Protect your printer from cyberthreats with HP Wolf Enterprise.
Monitor the status of your printer with Command Center's centralized dashboard

https://youtu.be/MbASXZgN3tI

Description

Speed and color in one device

Keep projects moving productively with the fastest color printer at 6 A1 color pages/min in its class.
Produce excellent CAD lines and graphics applications in monochrome and color with one large-format device with HP Flex Tech Inks.
No time is lost waiting for printouts—this printer
delivers the first page out in 20 seconds.
network

EFFICIENT—Simple and optimized

Give users an easy one-click copy and scan experience via the intuitive 15-inch front panel.
Optimize space with a large-format printer that is 20% more compact.
Take sustainability further with cardboard-based cartridges and printer made with 33% recycled plastic.

SECURE—Protect your printer, data, and network

Defend your network and data with the world’s most secure large-format printer.
Protect your printer from cyberthreats with HP Wolf Enterprise.
Monitor the status of your printer with Command Center's centralized dashboard.

Technical specifications

Print

First page out: 20 sec
Print speed: 360 A1/hr, 10 sec/A1, 6 A1/min
Print resolution: Up to 2400 x 1200 optimized dpi
Technology: HP Thermal Inkjet
Ink types: Pigment-based (C, M, Y, K)
Ink drop: 6.5 pl (C, M, Y); 13.5 (K)
Printheads: 6 (2x KM, 2x CY, 2x MK)
Line accuracy: ±0.1%
Minimum line width: 0.02 mm (PDF addressable)

Multifunction capabilities

Scan speed Scan: Up to 7.62 cm/sec (color, 200 dpi), up to 25.4 cm/sec (grayscale, 200 dpi)
Copy: Up to 15.24 cm/sec (color, 200 dpi), up to 25.4 cm/sec (grayscale, 200 dpi)
Scan resolution: Up to 600 dpi
Technology: Sheetfed, CIS (Contact Image Sensor)
Scan format: JPEG, TIFF, multipage PDF
Scan destinations: USB, shared network folder
Maximum scan length: 5 m (PDF), 16 m (TIFF), 8 m (JPEG)
Thickness: Up to 0.8 mm

Media

Handling: Spindle-less drawers, automatic front-loading roll feed, integrated output stacker , automatic horizontal cutter
Scanner: straight-through scan paper path for sheet and cardboard originals
Roll size: 279 to 914-mm width, up to 200-m length, 3-in core
Maximum roll diameter: 180 mm
Grammage: 60 to 328 g/m²
Thickness: Up to 0.5 mm
Applications: Line drawings; Maps; Orthophotos; Presentations; Renderings
Memory: 128 GB (file processing)
Hard disk: 256 GB SSD (AES-256 encrypted)

Connectivity

Interfaces: Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, DHCP/AutoIP (IPv4, IPv6), DHCPv6, SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTPS), IPsec, Raw IP printing (9100), LPD, IPP,
WS print, NTLM, SMB (v1/CIFS, v2, v3), SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS Native print languages: Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Printing paths: Direct printing from USB flash drive, print from network shared folder, FTP printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for macOS and iOS, HP Print for Chrome OS, HP Click, HP app for iOS and Android
Drivers: PDF, raster, and HP-GL/2 drivers for Windows, AirPrint for macOS
Security features: HP SureStart, Secure Boot, Whitelisting, HP Runtime Intrusion Detection, HP Connection Inspector, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, encrypted PIN printing, Syslog security logging

Dimensions (W x D x H)

Printer: 1603 x 614 x 1225 mm
Shipping: 1705 x 766 x 1265 mm

Weight

Printer: 182 kg
Shipping: 230 kg

What's in the box: HP DesignJet XL 3800 Multifunction Printer, printhead (x6), introductory ink cartridges (x4), scanner calibration sheet, documentation, power cords, maintenance cartridge, stacker, basket (at rear), control panel, monitor arm

HP Software and solutions: HP Click for Windows and macOS, HP app for Windows, macOS, and mobile, HP Web Jetadmin, HP Security Manager, HP
Easy Start, HP Print Scan Doctor, Mobile inOS printing, MPS, HP Command Center

Environmental ranges

Recycled plastic in printer: 33%
Operating temperature: 5 to 40°C
Operating humidity: 20 to 80% RH
Storage temperature: -25 to 55°C

Acoustics

Sound pressure: 50 dB(A) (normal print), <30 dB(A) (idle), <20 dB(A) (sleep)
Sound power: 6.8 B(A) (normal print), <4.8 B(A) (idle), <3.8 B(A) (sleep)

Power

Consumption: <220 W (printing + scanning), 50 W (ready), <2.2 W (sleep) (<14 W with DFE), 0.2 W (off)
Requirements: Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 3 A
