Overview

Description

High efficiency—the fastest large format printing in its segment and
cost-efficient production workflow

React immediately, and meet the tightest deadlines
> Respond immediately with the fastest largeformat printer —up to 30 D/A1 pgs/min —endto-end productivity.
> Reliable technical prints with HP PageWide XL pigment inks—vivid color, crisp lines, fine detail beat LED.
> Gain productivity—one device delivers mixed sizes/paper types in 50% of the time, no
mono/color collating.
> Start printing in 50% of the time with an ultrafast processor, native PDF management, and HP SmartStream.

Boost efficiency, enhanced workflows and security
> The market’s largest 15-inch touchscreen inlarge format printing makes it easy to operate from the front and the back.
> Avoid errors and reduce reprints by automatically detecting hidden layers before printing with HP SmartStream.
> Save preparation and finishing time by managing folder styles and adding job separators with HP SmartStream.
> Protect your network with the market's most secure large format printer in its segment — control printer access, create security settings.

Full end-to-end solution, up to 50% less costs
> Free up operator time with a high-capacity stacker, inline folders, auto-switch, and up to 6 rolls.
> Print monochrome and color technical documents at the same or lower cost than
comparable LED printers.
> Up to 10 times lower energy consumption than comparable LED printers.
> Eco-Carton replaces plastic cartridge—80%reduction in plastic and 66% C02e reduction, free take back

Technical specifications

General

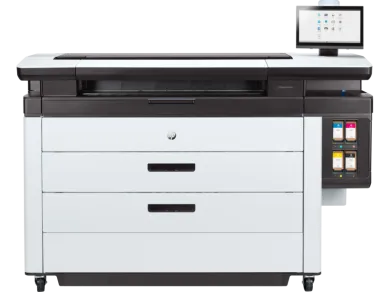

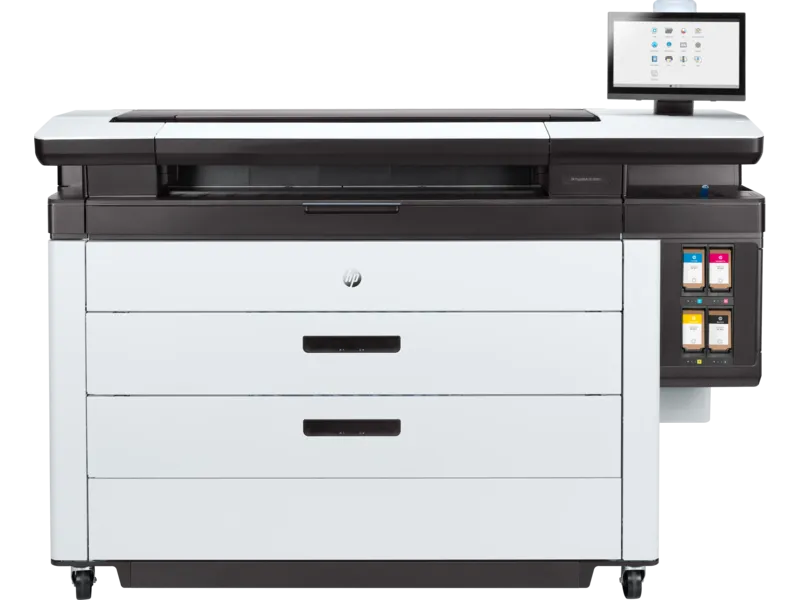

Description: Large-format color printer
Technology: HP PageWide Technology
Applications: Line drawings; Maps; Orthophotos; Posters
Ink types: Pigment-based (C, M, Y, K)
Ink cartridges: 4 (C, M, Y, K)
Cartridge size: 1 L
Printheads: 8 (C, M, Y, K)
Average printhead life: 32 L
Printhead warranty: 12 months from the date of installation, or 10 L, or until the Warranty Ends date printed on the packaging, whichever comes first
Print resolution: 1200 x 1200 dpi
Minimum line width: 0.02 mm (HP-GL/2 addressable)
Line accuracy: ±0.1%

Print speed
Technical documents (from roll): Up to 1500 A1 pages/hr, 30 A1 pages/min and Up to 800 A0 pages/hr, 18 A0 pages/min
Maximum print speed: 23 m/min
Warm-up time: No warm up
First page out: 18 sec (from USB)

Media
Media rolls: 2 rolls default with auto-switching, expandable to 6 rolls
Roll size: 279 to 1016 mm
Roll diameter: Up to 177 mm
Roll core diameter: 7.6 cm
Grammage: 70 to 200 g/m²
Media thickness: Up to 0.4 mm
Media types: Bond and recycled papers, poster papers, polypropylene, Tyvek papers, matte film
Media output (standard): Basket
Media output (optional): Top stacker (up to 100-page capacity), high-capacity stacker (up to 500-page capacity), online folder

Embedded controller
Processor: Intel Core i5
Memory: 16 GB DDR4
Hard drive: 1 x 128 GB SSD, 1 x 500 GB HDD, both self-encrypted with AES-256
Native print languages: HP-GL/2, TIFF, JPEG
Print languages (optional): Adobe PostScript 3, Adobe PDF 1.7 (with PostScript/PDF upgrade)
Remote management: HP Partner Link, HP Embedded Web Server, HP Web Jetadmin, PrintOS

Connectivity
Interfaces: Gigabit Ethernet (1000Base-T), USB 2.0 host
Printing paths: HP SmartStream software (optional), HP PageWide XL print drivers (PDF, HP-GL/2, and PCL3), Apple AirPrint

User interface
User interface: 15.6-inch (396-mm) TFT (LED blacklight) 16:9-format HD capacitive touchscreen

Dimensions (W x D x H)
Printer: 1955 x 785 x 1637 mm
Shipping: 2257 x 1040 x 1578 mm

Weight
Printer: 448 kg
Shipping: 577 kg

Environmental
Operating temperature: 5 to 40ºC
Operating humidity: 20 to 80% RH, depending on media type

Acoustics
Sound pressure: ≤60 dB(A) (operating), ≤36 dB(A) (idle), ≤20 dB(A) (sleep)
Sound power: ≤7.8 B(A) (operating), ≤5.5 B(A) (idle), ≤3.5 B(A) (sleep)

Power
Consumption: 0.37 kW (typical); 1.2 kW (max printing); 120 W (ready); <16 W (sleep)
Requirements: Input voltage (auto ranging) 200-240 V (±10%), 50/60 Hz (±3 Hz), 8 A

Certification
Safety: IEC 60950-1+A1+A2 and IEC 62368-1 2nd ed. compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 and 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); China (CCC)
Electromagnetic: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive),Australia and New Zealand (RCM), Japan (VCCI), Korea (KC)
Environmental: ENERGY STAR, EPEAT Registered, UL 2801 ECOLOGO, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine
