Overview

Description

Gain efficiency with fast, easy, and cost-effective production

Instant delivery of mono and color printouts
> Respond to your customers' requests right away with print speeds up to 20 D/A1 pages/minute.
> Reliable technical prints with HP PageWide XL pigment inks—vivid color, crisp lines, fine detail beat LED.
> Gain productivity—one device delivers mixed sizes/paper types in 50% of the time, no
mono/color collating.

Enhanced workflows, added efficiency and security
> The market’s largest 15-inch touchscreen makesit easy to operate from the front and the back.
> Save time—manage folder styles, add job separations, detect hidden layers before printing —with HP SmartStream.
> Protect your network with the world’s most secure printer —control printer access, create security settings.

Help cut production costs up to 30%
> Print in monochrome and color with a single HPbranded solution.
> Gain broad control over your printing costs with HP SmartTracker software.
> Up to 10 times lower energy consumption than comparable LED printers.
> Eco-Carton replaces plastic cartridge—80% reduction in plastic and 66% C02e reduction, free take back.

Technical specifications

General

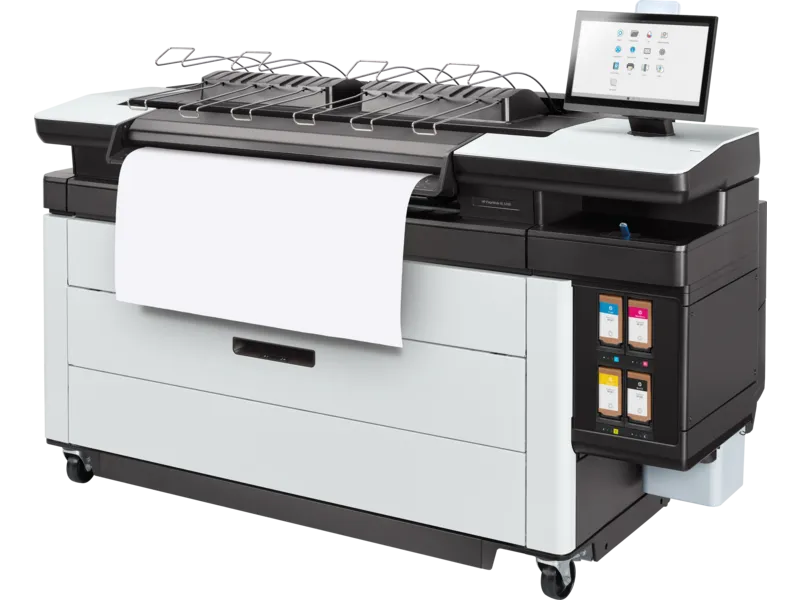

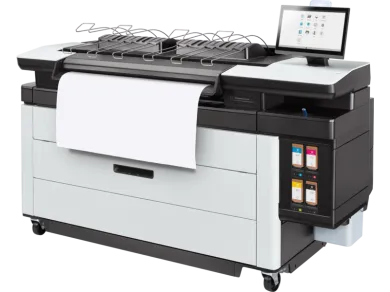

Description: Large-format color MFP or printer
Technology: HP PageWide Technology
Applications: Line drawings; Maps; Orthophotos; Posters
Ink types: Pigment-based (C, M, Y, K)
Ink cartridges: 4 (C, M, Y, K)
Cartridge size: 1 L
Printheads: 8 (C, M, Y, K)
Average printhead life: 32 L
Printhead warranty: 10 L or 12 months
Print resolution: 1200 x 1200 dpi
Minimum line width: 0.0008 in (HP-GL/2 addressable)
Line accuracy: ±0.1%

Print speed
Technical documents (from roll): Up to 1100 ANSI D pages/hr, 20 ANSI D pages/min
Up to 603 ANSI E pages/hr, 11 ANSI E pages/min
Maximum print speed: 50 ft/min
Warm-up time: No warm up
First page out: 20 sec (from USB)

Media
Media rolls: 2 rolls default with auto-switching, expandable to 4 rolls
Roll size: 11 to 40 in
Roll diameter: Up to 7 in
Roll core diameter: 3 in
Grammage: 19 to 53 lb
Media thickness: Up to 15.7 mil
Media types: Bond and recycled papers, poster papers, polypropylene, Tyvek papers, matte film
Media output (standard): High-capacity stacker (up to 500-page capacity), basket
Media output (optional): Top stacker (up to 100-page capacity)

Embedded controller
Processor: Intel Core i3
Memory: 16 GB DDR4
Hard drive: 1 x 128 GB SSD, 1 x 500 GB HDD, both self-encrypted with AES-256
Native print languages: HP-GL/2, TIFF, JPEG, Adobe PostScript 3, Adobe PDF 1.7
Remote management HP Partner Link, HP Embedded Web Server, HP Web Jetadmin, PrintOS

Connectivity
Interfaces: Gigabit Ethernet (1000Base-T), USB 2.0 host
Printing paths: HP SmartStream software (optional), HP PageWide XL print drivers (PDF, HP-GL/2, and PCL3)

User interface
User interface: 15.6-inch (396-mm) TFT (LED blacklight) 16:9-format HD capacitive touchscreen

Dimensions (w x d x h)
Printer: 77 x 80.3 x 55.7 in
Shipping: 88.9 x 40.9 x 62.1 in

Weight
Printer: 1128 lb
Shipping: 1490 lb

Environmental
Operating temperature: 41 to 104ºF
Operating humidity: 20 to 80% RH, depending on media type

Acoustics
Sound pressure: ≤60 dB(A) (operating), ≤36 dB(A) (idle), ≤20 dB(A) (sleep)
Sound power: ≤7.8 B(A) (operating), ≤5.5 B(A) (idle), ≤3.5 B(A) (sleep)

Power
Consumption: 0.29 kW (typical); 0.9 kW (max printing); 100 W (ready); <18 W (sleep)
Requirements: Input voltage (auto ranging) 100-127/200-240 V (±10%), 50/60 Hz (±3 Hz), 10/5 A

Certification
Safety: IEC 60950-1+A1+A2 and IEC 62368-1 2nd ed. compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 and 62368-1 compliant); Russia, Belarus, and
Kazakhstan (EAC); China (CCC)
Electromagnetic: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC)
Environmental: ENERGY STAR, EPEAT Registered, UL 2801 ECOLOGO, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine
