Overview

Description

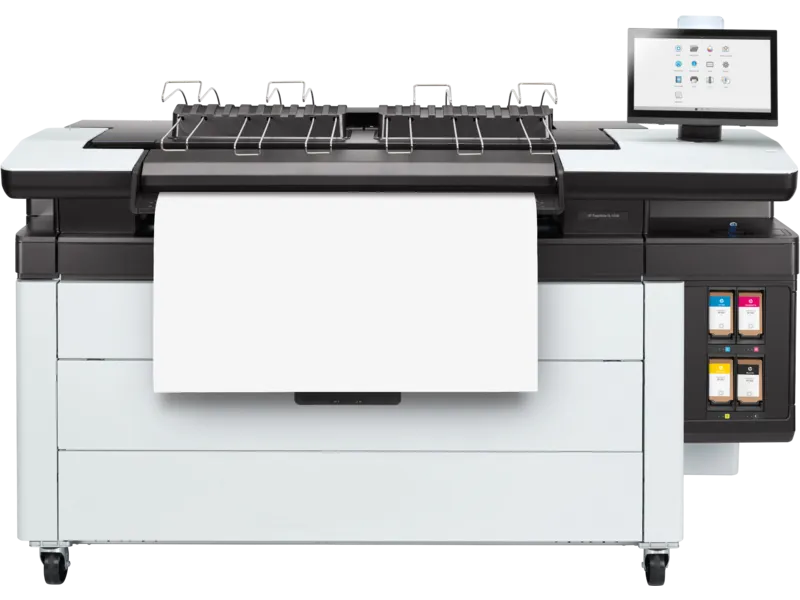

HP PageWide XL 4200 Printer series

Do the work of two printers with one—faster and lower cost than LED

FASTER
Monochrome and color, faster than LED
•Move projects forward with up to 10 D/A1 pgs/min monochrome and color, quick 30-second first page out
• Print, scan, copy in a single device—integrated 1200 dpi scanner with advanced and convenient workflows
• Consolidate—a single, easy-to-use device for all your monochrome and color printing/scanning needs
• Focus on your project, not the printer—up to 4 rolls with 100-page integrated top stacker

Technical specifications

General
Description: Large-format color MFP
Technology: HP PageWide Technology
Applications: Line drawings; Maps; Orthophotos; Posters
Ink types: Pigment-based (C, M, Y, K)
Ink cartridges: 4 (C, M, Y, K)
Cartridge size: 500 ml
Printheads: 8 (C, M, Y, K)
Average printhead life: 32 L
Printhead warranty: 10 L or 12 months
Print resolution: 1200 x 1200 dpi
Minimum line width: 0.0008 in (HP-GL/2 addressable)
Line accuracy: ±0.1%

Print speed
A1/Arch D/ANSI D (long edge first): 10 pages/min, 550 pages/hr
Warm-up time: No warm up
First page out: 22 sec (from USB)

Media
Media rolls: 2 rolls default with auto-switching, expandable to 4 rolls
Roll size: 11 to 40 in
Roll diameter: Up to 7 in
Roll core diameter: 3 in
Grammage: 19 to 53 lb
Media thickness: Up to 15.7 mil
Media types: Bond and recycled papers, poster papers, polypropylene, Tyvek papers, matte film
Media output: (standard) Top stacker

Scanner
Description: 36-in (91-cm) CIS scanner
Speed Color: up to 6 in/sec
grayscale: up to 10 in/sec
Optical resolution: 1200 dpi
Scan width: Up to 36 in
Original thickness: 0.01 in
Maximum copy length: 374.5 in
Maximum scan length: 164 ft (PDF), 39 ft (TIFF), 26 ft (JPEG)
Scan format: JPG, TIFF, multi-TIFF, PDF, PDFA, multi-PDF, multi-PDFA
Scan features: Live preview, scan quicksets, smart background removal, black enhancement, automatic de-skew, reduce scan speed, post-edit settings (contrast, brightness, rotation, cropping and skew)
Scan destination: Printer storage, USB drive, network folder (SMB), My home folder, scan to email, scan to HP SmartStream software

Embedded controller
Processor: Intel Celeron
Memory: 8 GB DDR4
Hard drive: 1 x 500 GB HDD, self-encrypted with AES-256
Print languages: (standard) HP-GL/2, TIFF, JPEG, Adobe PostScript 3, Adobe PDF 1.7
Remote management HP Partner Link, HP Embedded Web Server, HP Web Jetadmin

Connectivity
Interfaces: TCP/IP, BootP/DHCP, USB 2.0 host
Printing paths: HP SmartStream software (optional), HP Click printing software, HP PageWide XL print drivers (PDF, HP-GL/2, and PCL3)

User interface
User interface: 15.6-inch (396-mm) TFT (LED blacklight) 16:9-format HD capacitive touchscreen

Dimensions (w x d x h)
Printer: 77 x 30.9 x 55.7 in
Shipping: 88.9 x 40.9 x 62.1 in

Weight
Printer: 996 lb
Shipping: 1368 lb
